Filling Machine

◆ What is filling machine

A filling machine is a type of equipment that is designed to fill various products (such as liquids, powders, granules, or pastes) into different types of containers (such as bottles, cans, bags, or pouches) with a desired quantity. There are automatic filling machines and semiautomatic filling machines fit for different packing requirements. The filling machines are widely used in industries such as food and beverage, pharmaceuticals, cosmetics, and chemicals for accurate and efficient packaging of products.

◆ Filling machine products

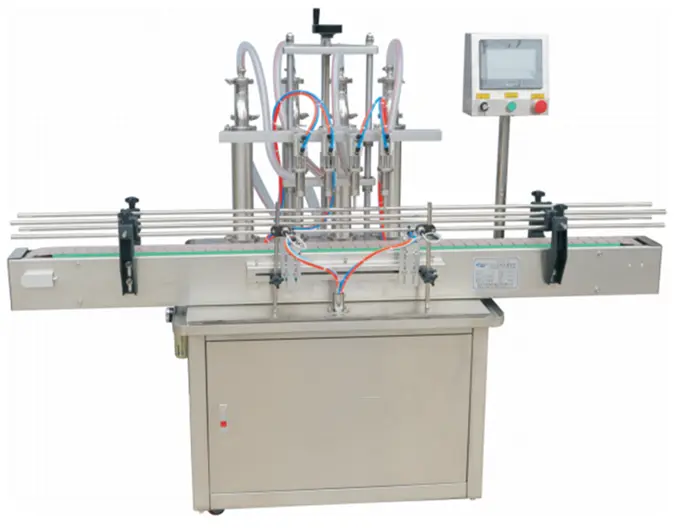

automatic pouch packing machine manufacturer

Automatic Bottle Filling Machine

automatic bottle filling machine price approx.: 4500 USD 19500RMB

Product details:

Automatic Grade Fully automatic
Capacity(bag/min) 20-50 bottles/min (Depends on filling volume)
Packing type Bottle
Filling range (ml) 10-100ml, 10-300ml, 50-500ml, 100-1000ml, 500-2500ml, 1000-5000ml,
Filling accuracy ±1%
Power supply 220V/50HZ (customizable 110V/60Hz) 500W
Rated air pressure 0.4-0.6 Mpa

This automatic bottle filling machine is an automatic liquid bottle filling machine, it is used to fill liquid products (such as water, sauces, alcohol, honey, laundry detergent, etc.) into bottles or containers without manual labor. It can be used as automatic mineral water bottle filling machine, automatic milk bottle filling machine, automatic wine bottle filling machine, automatic oil bottle filling machine, etc. This automatic liquid bottle filling machine typically consists of a conveyor belt, filling nozzles, sensors, and a control system, all filling process are automatically. This automatic bottle filling machine adopts a lifting-type filling head to eliminate the generation of foam. The filling machine parts in contact with the material are all made of stainless steel. It has the characteristics of high filling accuracy, convenient installation and debugging, easy cleaning and maintenance, and no dripping. filling, and also has a counting function. Automatic liquid bottle filling machines are commonly used in industries such as pharmaceuticals, food and beverage, cosmetics, and chemicals.

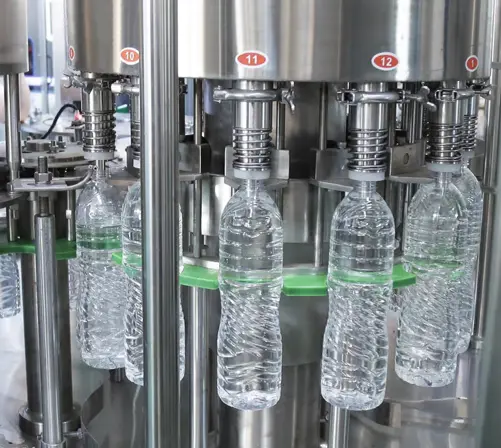

Automatic Water Bottle Filling Machine
automatic water filling machine price approx.: 25000 USD

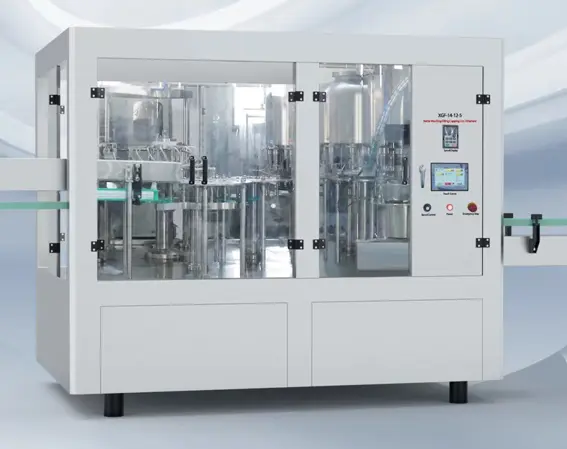

water bottle filling machine price list
water filling machine factory

This water filling machine is an automatic water bottle filling machine which can automatically fill water bottles without the need for manual labor. The entire filling machine process such as bottle feeding, positioning, rinse/cleaning, filling, capping/sealing is controlled by a programmable logic controller (PLC) system, which coordinates and synchronizes the various operations of the fully automatic water bottle filling machine. The automatic water bottle filling machine project is designed to optimize efficiency, accuracy, and productivity in the bottle filling process, reducing labor costs and increasing production output. It also has safety features (such as emergency stop buttons or sensors) to ensure operator safety. This mineral water filling machine is a 3 in 1 water filling machine, can perform three functions (rinsing, filling and capping) in one machine. This bottled water filling machine is suitable for filling various types of bottles, including PET bottles, glass bottles, and other types of containers. It is widely used in industries that produce bottled water, non-carbonated beverages. and other liquid products. We are water filling machine manufacturer with complete range of water filling machines. In addition to the bottle water filling machine, we also have sachet water filling machine, barrel water filling machine etc. welcome to contact for more discussion.

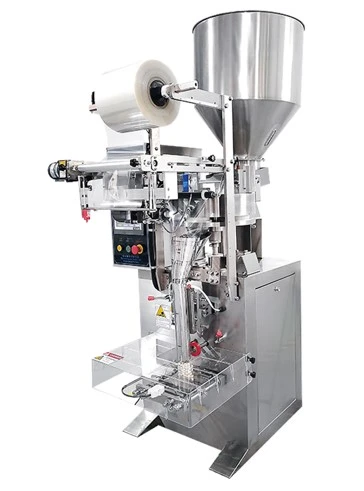

vertical sachet filling machine

Sachet Filling Machine

sachet filling machine price approx: 4000-10000 USD

Product details:

Application: Grains, toys, plastics, hardware, rubber and other granules and powders
Automation grade Full automatic
Bag length 30-170cm
Bag width 30-100cm
Bag capacity 1-100g
Packing speed 30-60 bags/min
Voltage 220V/AC-50HZ
Power 1.4KW

A sachet filling machine, also known as a pouch filling machine or bag filling machine, is used to fill and seal various types of products (such as powders, granules, liquids, or pastes) into individual small sachets for packaging. Users only need to install the packaging material and set the packaging data on the control panel of the automatic sachet filling machine, the machine can automatically complete processes such as weighing, measuring, bag-making, filling, packaging, sealing, and cutting. It can be combined with material elevators, finished product conveyors, etc., to form a packaging production line, further improving the automation level, packaging efficiency, and saving labor costs. We are sachet filling machine manufacturers, providing liquid sachet filling machines (such as water sachet filling machine, milk sachet filling machine), powder sachet filling machine, sachet filling machine pharma, granule pouch filling machine like tea sachet filling machine, as well as sauce and paste bag filling machine like mayo sachet filling machine and shampoo sachet filling machine. Please feel free to contact us for more information about our filling machines.

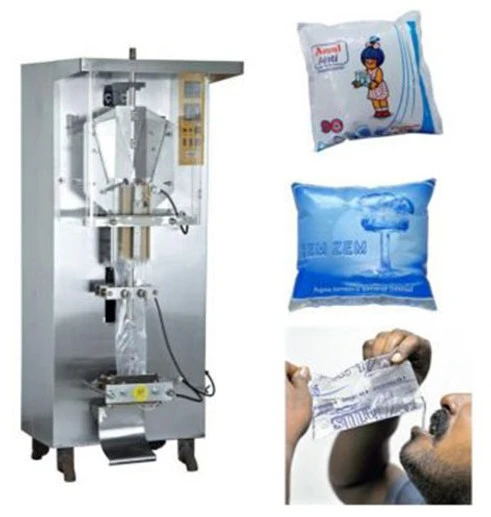

water sachet filling and sealing machine

Liquid Sachet Filling Machine

sachet liquid filling machine price approx.: 1800-3000 USD

Product details:

Application: Liquids (such as water, milk, soy milk, juice, beverages, soy sauce, vinegar, rice wine etc.)
Automation grade Full automatic
Bag length 50-150cm
Bag width 150-320cm
Bag capacity 50-500ml (optional and customizable)
Packing speed 20-30 bags/min (depends)
Voltage 220V/AC-50HZ
Power 2.1KW

This liquid sachet filling machine is a fully automatic sachet filling and sealing machine that can automatically complete processes such as bag-making, measuring, filling, sealing, cutting, counting, and batch printing. The sachet water filling sealing machine adopts a stainless steel structure, which is environmentally friendly, hygienic, corrosion-resistant, and heat-resistant. It is durable and equipped with a check valve device to prevent backflow of materials when the machine stops. The packaging size, weight, sealing temperature, and other parameters of the sachet filling and packing machine can be adjusted. It is easy to operate, firm and strong sealing, and has the advantages of being fast, economical, and practical. This sachet liquid filling machine is commonly used as a pure water sachet filling and sealing machine, milk sachet filling machine, sachet filling machine pharma, etc., and widely applied in the packaging of mineral water, milk, soy milk, tofu pudding, fruit juice, various beverages, soy sauce, vinegar, rice wine, and other low to medium viscosity liquids in film bags.

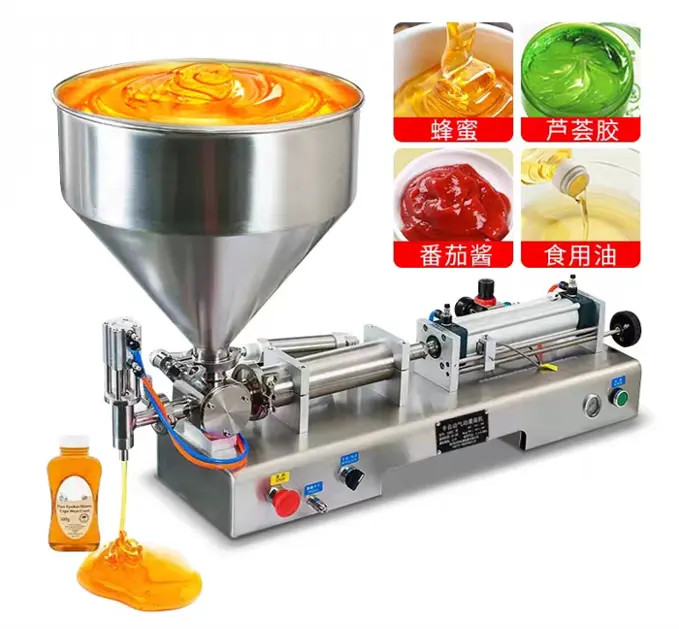

paste filling machine manufacturer

Paste Filling Machine

paste filling machine price approx.: 600-1000 USD

Product details:

Application: Food, Beverage, Commodity (Honey, Milk, Water, Oil, Juice and so on.)
Automatic Grade Semi-automatic
Driven Type: Pneumatic and electric
Packing type CANS, Bottles, Bags, Pouch, Other
Filling range (ml) 100-1000ml
Filling accuracy ±1%
Power supply 220V/50HZ (customizable 110V/60Hz) 10W
Rated air pressure 0.4-0.6 Mpa

This semi automatic paste filling machine is a liquid paste filling machine, which can accurately and effectively fill liquid and paste substances into containers (such as bottles, cans, bags, etc.). This paste liquid filling machine can be placed on the workbench or desktop for packaging work. It is small in size and light in weight. It is a compact multi-functional device that provides users with convenience and ease of use. This semi automatic paste filling machine can automatically perform liquid dosing and filling. The production efficiency is much higher than the manual paste liquid filling machine, and the price is much lower than the automatic paste filling machine. It is very popular with users of small and medium-sized production scales. This high viscosity paste filling machine is widely used in food and beverage, pharmaceutical, cosmetics, chemical manufacturing and other industries, and is commonly used as tomato paste filling machine, praline paste filling machine, ginger garlic paste filling machine, cosmetic paste filling machine, etc.

◆ Types of filling machine

According to different classification methods, filling machines can be divided into many types.

● According to the filling operation mode of the filling machine, the mainly filling machine types include vertical filling machine and horizontal filling machine;
● According to the automation level, the filling machine can be divided into fully automatic filling machine, semi auto filling machine, manual filling machine;
● According to the packaging material, pouch filling machine, spout pouch filling machine, bottle filling and capping machine etc.;
● According to the form and properties of materials, there are liquid filling machine, paste filling machine, powder filling machine and granules filling machine etc.
● According to the type of material, common filling machine types include: food filling machine, lotion filling machine, juice filling machine, beverage filling machine, pharmaceutical filling machine,cosmetic filling machine and so on.

◆ Filling machine manufacturers

We are filling machine manufacturers with professional R & D team and advanced production equipment, For many years, we have been providing market and users with a wide variety of filling machines and filling machine spare parts with stable quality and superior performance, to meet the needs of users with different production scales and different packaging requirements. Welcome to contact us for specific consultation.
