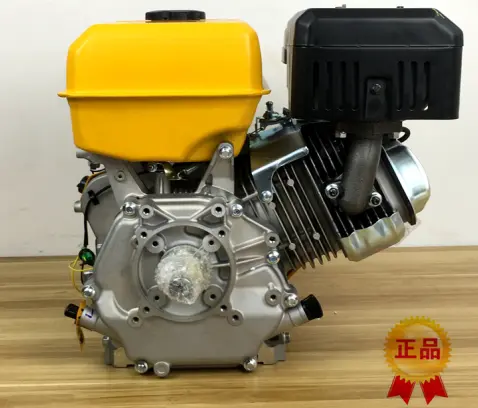

420cc Engine 190F engine general purpose engine

model: YS190FA 420cc engine price electric: 185 – 260 USD

What is 420cc engine
The 420cc engine also known as the 190F engine, refers to a single-cylinder four-stroke air-cooled engine with an engine displacement of 420cc. The cylinder bore is 90mm, so it is also called 190F engine, where "1" means the number of cylinders is 1, that is, a single cylinder, "90" means the cylinder diameter, and "F" means that the cooling method is air cooling. Some people will ask 420cc engine is how many horsepower, in fact, The hp rating of 420cc engine is 15hp/16hp, which varies slightly according to different manufacturers.

Our 420cc engine horsepower is 16HP, it has the following features:
● Adopt high-efficiency overhead valve (OHV) combustion system, strong power, high efficiency and long-lasting;
● Adopt all-steel crankshaft, low failure and long life;
● High-quality oil-bath air filter, good sealing performance, excellent air filtration performance, effectively reducing dust entry and prolonging engine service life;
● The whole machine adopts high-quality materials, so that the performance of the engine is stronger and more stable;
● In addition, a low-noise muffler is used to effectively reduce noise and create a good working environment.

● 420cc engine technical data

Engine type	Single cylinder, 4-stroke, overhead valve
Bore × stroke(mm)	90×66
Displacement(ml)	420
Start mode	Recoil/Electric (optional)
420cc engine hp (420cc engine horsepower)	16
Max. Output (HP/rpm)	16/3600
420cc engine speed (power) (rpm)	3600 r/min
Max. Torque (N.m/rpm)	12/2500
420cc engine top speed (torque) (rpm)	2500 r/min
Fuel designation	Unleaded gasoline above 90#（GB17930-1999）
Fuel designation	≤374
Fuel tank capacity(L)	6.5
420cc engine oil capacity (L)	1.1
Dimension L×W×H(mm)	490×440×520
Net Weight(kg)	16

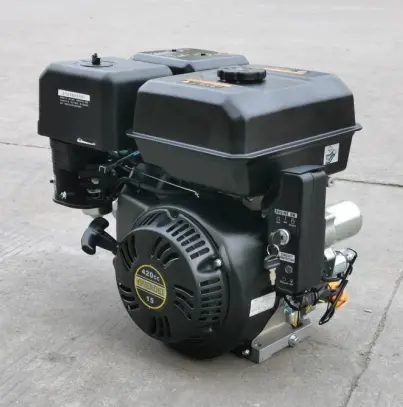

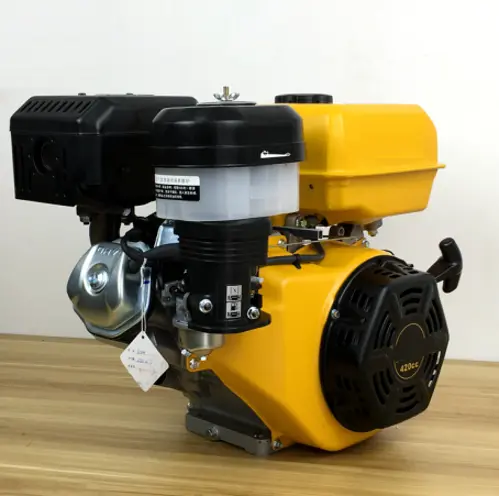

Kindly note: we can add 420cc engine electric start kit to make it become 420cc engine with electric start model.

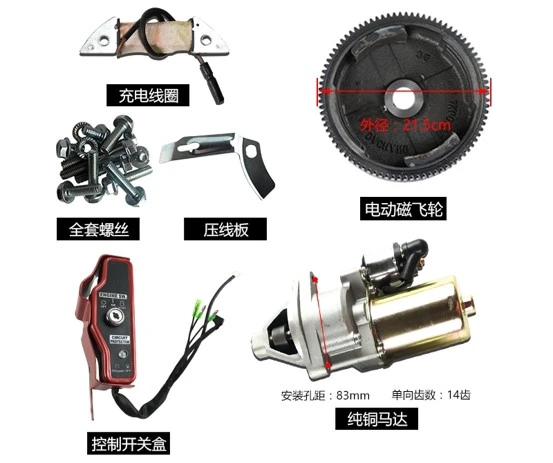

● 420cc engine electric start kit

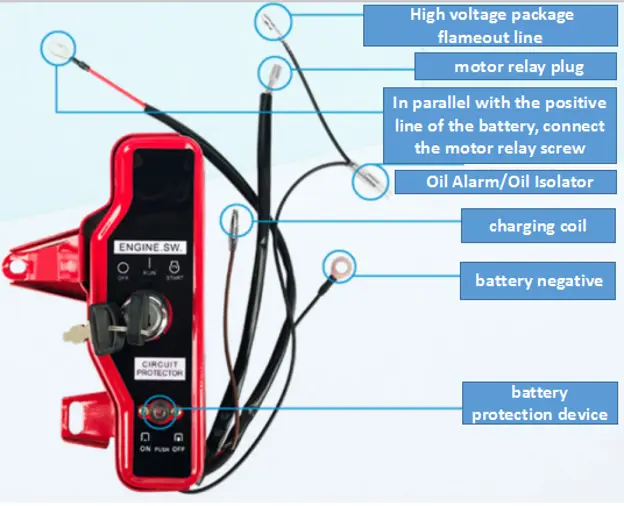

● predator 420cc engine wiring diagram of control switch box

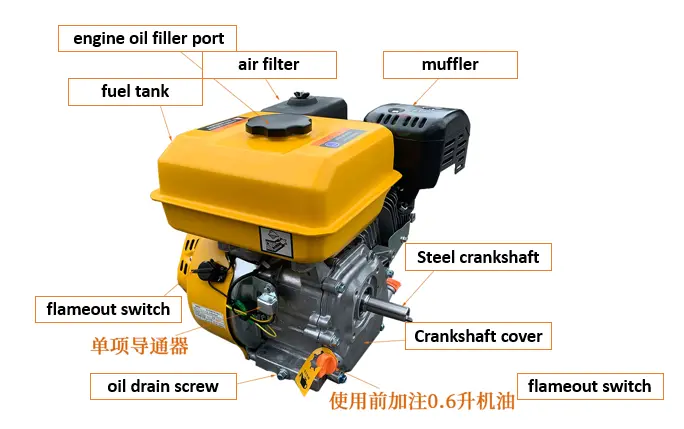

● Pro point 420cc engine wiring diagram for structure

● Advantages of 420cc engine for sale

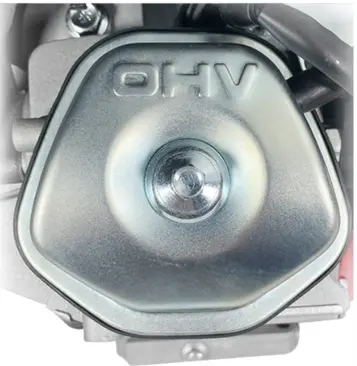

1) OHV overhead valve with high efficiency suction and exhaust, lower fuel consumption, lower operating temperature, better performance.
2) Adopt high-quality 420cc engine carburetor, more fuel-efficient, smoother and more durable.
3) Adopt advanced oil bath air filter, which is more sealed, reduces dust entry and reduces engine wear.

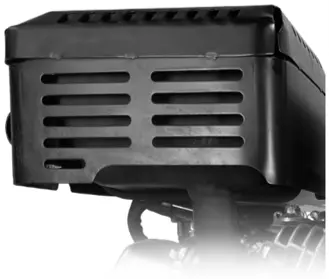

4) Low-noise muffler, durable and long-lasting, effectively isolating sound transmission.
5) All-steel cams, have stronger performance, greater tolerance, and are not easy to be damaged.
6) Hand-pulled recoil starter, with a pressure relief mechanism, women can also easily start.

● 420cc engine Horizontal shaft engine projects

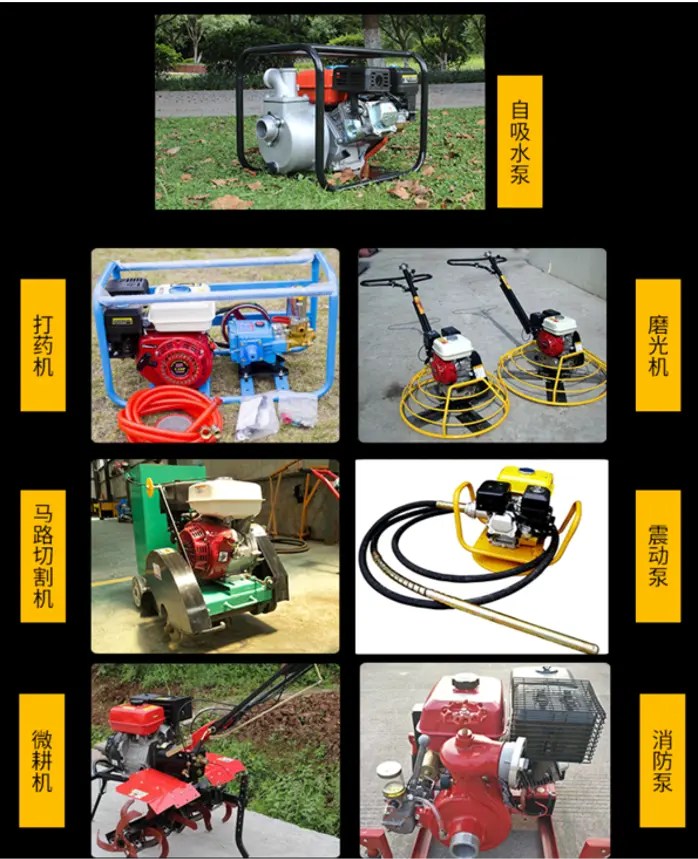

We have a variety of general purpose engine that can adapt to different working environments and operating requirements, for example, you can view 5.5 hp petrol engine (gasoline engine 5.5 hp), 196cc engine (gasoline engine 6.5 hp), 212CC engine 170F engine, 9ph petrol engine, 10 hp horizontal shaft engine for sale, 13 hp horizontal shaft engine electric start (188F engine), 18 hp horizontal shaft engine for sale (460cc engine) etc. to know more details, They can power polishers, threshing machines, sprayers, water pumps, tillers, hole punchers, gasoline engine vibrators, ships, etc.

● 420cc engine parts

We also sell 420CC engine parts, such as 420cc engine oil，420cc engine mount，420cc engine carburetor，420cc engine block, 420cc engine spark plug, 420cc engine valve, 420cc engine oil filter, 420cc engine electric starter etc. When there is a problem with your machine, it may not be necessary to buy a new engine. Many situations can be solved by replacing the corresponding engine parts. Please contact us for consultation.

● Our service

We are committed to providing the market and users with small and medium-sized convenient power machinery with reliable quality, stable performance and affordable price.
1) We not only sell engines, but also sell engine parts.
2) We also sell some machinery powered by general purpose engine, such as concrete power screed, tamping rammer, road cutter, motorized wheelbarrow, gas paint sprayer etc. 3 We have a professional technical team to provide users with after-sales technical support, answer questions, and introduce knowledge of troubleshooting, such as adjusting valve clearance, air filter maintenance, carburetor oil leakage, engine cannot start, engine no sparks etc., so that customers have reliable after-sales service.
We sincerely hope to reach a long-term cooperation with you, please feel free to contact us.
